Zhang T, Sun XF (2020) Hemicellulose/poly(acrylic acid) semi-IPN magnetic nanocomposite hydrogel for lysozyme adsorption. Int J Nanomater Nanotechnol Nanomed 6(1): 001-005. DOI: 10.17352/2455-3492.000032A novel hemicellulose-based magnetic nanocomposite hydrogel was synthesized with modified Fe3O4 nanoparticles using H2O2-Vc as a green initiator system. The nanocomposite hydrogels were characterized by FT-IR, SEM and VSM, and the swelling properties of the hydrogels were also studied. The result demonstrated that the nanocomposite hydrogels had excellent pH sensitivity and magnetic property. This study found that the increases of the contents of Fe3O4 nanoparticles resulted in higher cross-linking density, and the swelling ratio of the prepared hydrogels decreased. The VSM analysis showed that the magnetic hydrogels had superparamagnetic property, and the magnetization intensity increased with an increase in the content of Fe3O4 nanoparticles. The adsorption isotherm study of lysozyme demonstrated that both of Freundlich and Temkin isotherms models can describe the adsorption of lysozyme on the magnetic hydrogels. The smart swelling property and the high adsorption capacity of the magnetic hydrogel would expand it applications in drug delivery and magnetic separation aspects.
Stimuli-responsive hydrogels can respond to external stimuli such as pH, temperature, solvent, ionic strength, light, electric and magnetic field [1] and they have been investigated due to their potential applications in drug-delivery systems [2], biological separation, water treatment, soil conditioning [3-5] and so on. In recent years, magnetic hydrogels have attracted a great attention and applied in remote controlled drug release [6], cancer treatment, and toxic metal ion removal [7]. Some progresses in designing advanced magnetic materials and 3D multifunctional substrates/scaffolds had been made by using Fe3O4 nanoparticles and biomimetic iron-doped hydroxyapatite nanoparticles. A basic approach toward the development of nanocomposite magnetic scaffolds was suggested for advanced bone tissue engineering [8] and magnetic poly(ε-caprolactone)/iron-doped hydroxyapatite nanocomposite substrate was prepared for advanced bone tissue engineering [9].
Hemicelluloses are the second most abundant native polymers in biomass, and hemicellulose-based hydrogels have been studied for applications in tissue engineering, adsorptions of proteins and drug delivery because of their biocompatibility and hydrophilicity [10-12]. There is currently promising research on preparing novel hemicellulose-based magnetic hydrogels for various biomedical applications.
In this paper, intelligent hydrogels based on hemicellulose and functional Fe3O4 nanoparticles were prepared using semi-interpenetrating network technique. The swelling properties of the magnetic hydrogels were studied in detail, and the adsorption of lysozyme onto the prepared hydrogels was also studied to test their potential for biomedical applications.
Hemicelluloses (HC) were prepared according to a previous paper [11]. Ferric chloride hexahydrate (FeCl3·6H2O) and sodium acetate (CH3COONa, NaAc) were obtained from the Tianjian Chemical Reagent in China. Ethylene Glycol (EG) was purchased from Sinopharm company in China, and triethoxyvinylsilane (CH2=CH-Si(OC2H5)3, A151) was purchased from the Shanghai Chemical Reagent Co. Ltd. in China. Acrylic acid (AAc) and H2O2 were purchased from Tianjin Kermel Chemical Reagent Company in China, and the cross-linker N, N-methylenebiacrylamide (Bis) was purchased from Tianjing Hongyan Chemical Reagent Factory in China. Lysozyme and Vitamin C(Vc) were obtained from J&K scientific Ltd. All chemicals were of analytical grade and used without further purification. Deionized water was made using Ultra-pure water machine.
FeCl3·6H2O (1.3g) was dissolved in EG (40ml) followed by the addition of NaAc (3.6g) and the mixture was magnetically stirred until being completely dissolved. The obtained homogeneous yellow solution was transferred into Teflon-lined stainless-steel autoclave which was heated at 180°C for 10h. After reaction, the Fe3O4 particles were collected by applying an external magnetic field and washed with ethanol and water for several times. Finally, Fe3O4 particles were dried in a freezing dryer.
The modification of Fe3O4 nanoparticles were conducted by ultrasonically dispersing Fe3O4 particles in ethanol (20ml) and water (10ml) mixture solution for 30min, and then transferred into a three-necked flake. The silane coupling agent (A151, 0.33ml) was added dropwise over a period, and the reaction mixture was stirred at 55°C for 7h. The products were collected by magnetic separation and washed with ethanol and water to remove the excess organic reagent. Finally, the nanoparticles were dried in a freezing dryer.
0.2g of HC was firstly dissolved in 9ml distilled water completely at room temperature, and then 0.06g of modified Fe3O4 nanoparticles were dispersed in l ml AAc, and the redox initiator system H2O2-Vc was added to the AAc mixture solution which was treated under ultrasound condition for 30s. Afterward, the hemicellulose solution was poured into the AAc mixture, and the solubilised cross-linker was added slowly, and this solution was stirred using mechanical agitation until hydrogel formed. The prepared hydrogels were taken out and cut into uniform size pieces and then soaked in distilled water for 48h. During this period, it was necessary to change the water regularly for washing away the unreacted monomer and initiator. Finally, the prepared hydrogels were pre-frozen at -20°C and then freeze-dried at -50°C for 48h. The synthesis conditions of the hydrogels are specified in Table 1.
The chemical structures of prepared hydrogels were analyzed using Fourier transform infrared spectroscopy (FT-IR). Scanning electron microscopy (SEM) was used to observe the surface morphology of prepared hydrogels. Magnetic property of hydrogels was evaluated by using Vibration samples magnetometer (VSM).
Swelling experiments were conducted in buffer solutions of measured pH, and the ionic strength was adjusted to 0.1M using KCl. Hydrogels swollen to equilibrium were taken out and weighed after removing excess surface water with filter papers. Equilibrium swelling ratio S (g/g) can be calculated by equation (1):
where Ws (g) and Wd (g) are the weights of the swollen and dried hydrogels, respectively.
Gel-4 was placed into different concentrations of lysozyme solution for adsorption, and the container was then sealed with plastic wrap for 24h at room temperature. Thereafter, the concentration of lysozyme solution was measured by UV spectrophotometer at 280nm. The adsorption amount is calculated by equation (2):
Where Q (mg/g) is the amount of lysozyme adsorbed on hydrogels; V (L) is the volume of the solution; m (g) is the mass quantity of Gel-4; C0 (mg/L) and Ce (mg/L) are the initial and equilibrium concentration of lysozyme solution, respectively.

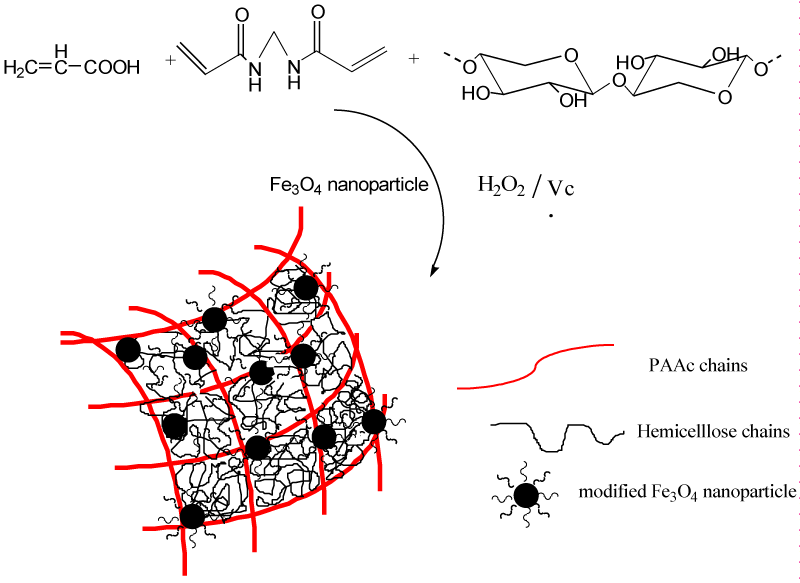

The proposed mechanism for the synthesis of HC/PAAc semi-IPN magnetic nanocomposite hydrogels is shown in Figure 1. Firstly, the redox initiator system H2O2-Vc generated oxygen anion radical (O2-.) which initiated the polymerization of acrylic acid, and modified Fe3O4 nanoparticles joined into this polymerization by covalent bonds through the vinyl group on the surface. PAAc was cross-linked to form the three-dimensional network after the addition of cross-linker Bis, and HC was introduced into PAAc network by physical effect. Therefore, HC/PAAc semi-IPN magnetic hydrogels were obtained.

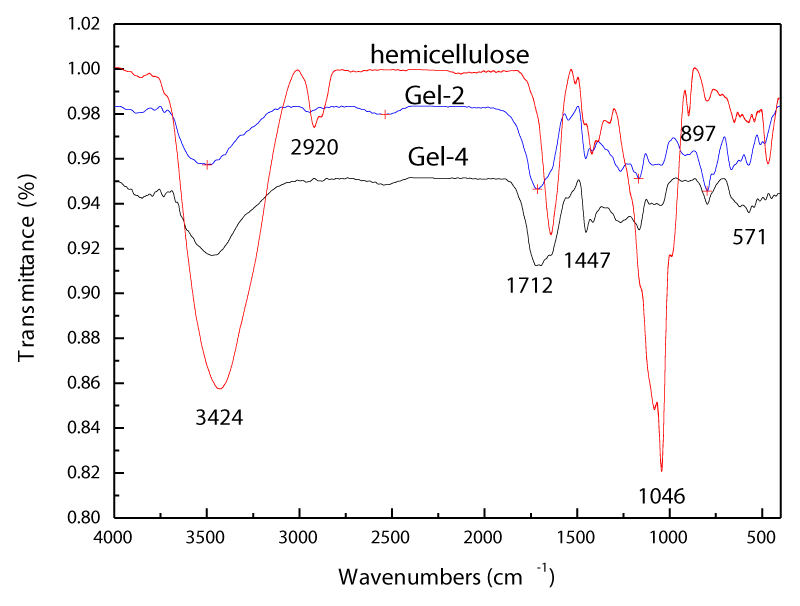

Figure 2 illustrates the FT-IR spectra of HC and HC/PAAc semi-IPN magnetic hydrogels. In the spectra of Gel-2 and Gel-4, the peaks at 1712cm-1 and 1447cm-1 were related to the C=O stretching vibration and symmetrical stretching vibration of –COOH, respectively [11,12]. The peak at 571cm-1 was the characteristic absorption peak of Fe3O4 nanoparticles, which was assigned to the Fe2+-O2 stretching [13]. In HC spectrum, a strong band at 3424cm-1 was caused by O-H absorption and a symmetric C-H absorption band appeared at 2920cm-1. The obvious absorption peak at 1046cm-1 was the characteristic of the C-O and C-C stretching and the glycosidic linkage V(C-O-C) contributions. The sharp absorption peak at 897cm-1 was assigned to frequency vibrations of C1 group and pyranose ring, which was the characteristic absorption peak of the glycosidic bond between sugar units [12]. These results indicated that HC was incorporated into the HC/PAAc semi-IPN magnetic hydrogels.
Figure 3 shows the dependence of equilibrium swelling ratio of the hydrogels in buffer solutions. It was observed that the equilibrium swelling ratio rapidly increased at first and then changed slowly. Because the pKa value of –COOH of acrylic acid is 4.28, the –COOH groups at lower pH (pH Figures 3a,b show the effects of Fe3O4 nanoparticles and cross-linker on equilibrium swelling ratio, respectively. It is observed that the equilibrium swelling ratio decreased with an increase in the contents of Fe3O4 nanoparticles and cross linker. This was mainly because of the increased cross-linking density, and it resulted in a decrease of the distance between copolymer chains. SEM images of Gel-2 and Gel-4 in Figure 4 indicated that the HC/PAAc semi-IPN magnetic nanocomposite hydrogel had a macro-porous structure, and the pore size of the hydrogels decreased when the amount of added Fe3O4 nanoparticles increased. The reason had been previously mentioned regarding to the effect of Fe3O4 nanoparticles on swelling ratio. Magnetic characterization of prepared nanocomposite nanocomposite hydrogels was performed under an external magnetic field of 15kOe, as shown in Figure 5. The specific saturation magnetizations of Gel-2, Gel-3 and Gel-4 are 2.94emu/g, 8.72emu/g, and 12.18emu/g, respectively. As shown in Figure 5, the coercive force was close to zero, which is the typical characteristic of super-paramagnetic particle. The prepared hydrogels exhibited excellent magnetic response, which are important for the drug delivery and magnetic separation. The effect of initial lysozyme concentration on adsorption performance of the prepared hydrogel was studied, and an increase of initial concentration led to a linear increase in the amount of adsorbed lysozyme, and the adsorption amount of lysozyme on the prepared hydrogel can be more than 180mg/g. Two theoretical isotherm models were used to analyze the adsorption of lysozyme on the prepared hydrogels. The Freundlich equation is the empirical relationship whereby it is assumed that the adsorption energy of a protein binding to a site on an adsorbent depends on whether or not the adjacent sites are already occupied. This isotherm model indicates a heterogeneous adsorption. The equation is expressed as following [14].
where KF is the Freundlich constant, and Ce is the equilibrium concentration of lysozyme solution, and qe is the equilibrium quantity of adsorbed lysozyme. The Temkin isotherm model is shown as equation (4) [15] and it is assumed that the adsorption heat of all the molecules in the layer would decrease linearly with coverage due to sorbent interactions.
Where Ce is the equilibrium concentration of lysozyme solution; A and B represent isotherm constants. Relevant adsorption parameters were also calculated according to the two adsorption isotherms equations, and the results are represented in Table 2. The correlation coefficient of Freundlich equation was much higher than 0.99, and KF and n were 1.6482 and 1, respectively. This suggested that the adsorption of lysozyme on the prepared magnetic hydrogels is spontaneous. The Temkin data indicated that the adsorption heat would decrease linearly with the increase of adsorbent coverage, owing to the interaction between adsorbent and adsorbate. Both of Freundlich and Temkin simulations exhibited high R2, so the two models are considerably better fitted to the adsorption. In summary, the HC/PAAc semi-IPN magnetic hydrogel was successfully fabricated using semi-interpenetrating network technique, and its application was studied for the adsorption of the lysozyme. The increases of the contents of Fe3O4 nanoparticles and Bis resulted in higher cross-linking density; thus the swelling ratio of the prepared hydrogels decreased. The VSM analysis showed that the HC/PAAc semi-IPN magnetic hydrogels had superparamagnetic property, and the magnetization intensity increased with an increase in the content of Fe3O4 nanoparticles. The adsorption isotherm study of lysozyme demonstrated that both of Freundlich and Temkin isotherms models are suitable for describing the adsorption of lysozyme on the HC/PAAc semi-IPN magnetic hydrogels. The smart swelling property and the high adsorption capacity of the HC/PAAc semi-IPN magnetic hydrogel would expand it applications in drug delivery and magnetic separation aspects.Morphology of HC/PAAc semi-IPN magnetic hydrogel

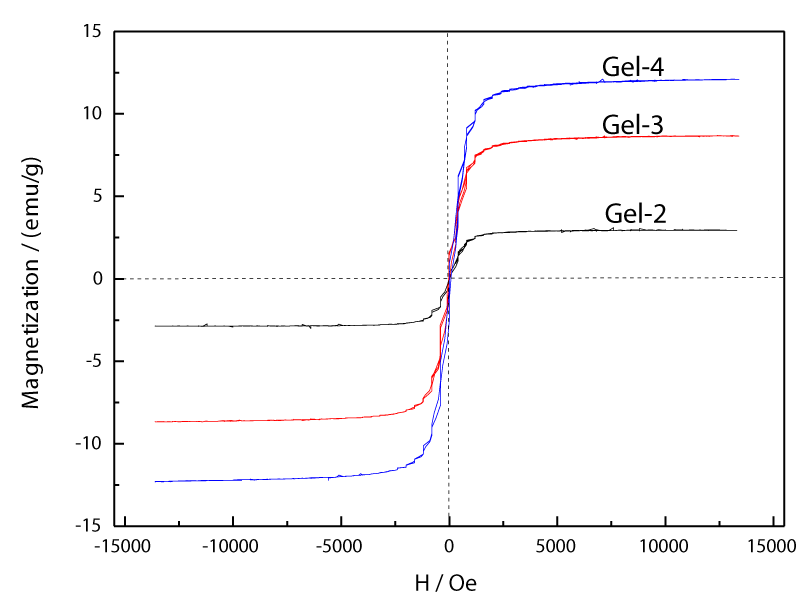

Magnetic property of HC/PAAc semi-IPN magnetic hydrogel
Lysozyme Adsorption
Conclusion
The authors appreciate the supports by “the Fundamental Research Funds for the Central Universities” (310201911cx012) and “the Seed Foundation of Innovation and Creation for Graduate Students in Northwestern Polytechnical University” (Z2020230).
