Highly Protein-resistant AuNPs-ampholytes Modified Boric Acid Hydrogel for Saliva Glucose Detection

Saliva glucose detection using QCM technology has garnered significant attention of non-invasive blood glucose monitoring. Introducing antifouling materials is a pivotal strategy for addressing the issue of indiscriminate protein adsorption in saliva. Nonetheless, equipping surfaces with antifouling properties often comes at the cost of compromising the sensitivity of QCM tests. To tackle this challenge, we engineered an innovative antifouling hydrogel that integrates gold nanoparticles functionalized with L-cysteine (Au-Cys). When immobilized on quartz chips, this hydrogel not only enhanced glucose sensitivity but also significantly reduced nonspecific protein adsorption . The sensitivity of hydrogels without Au-Cys increased from 0.34 Hz/(mg/L) to 0.45 Hz/(mg/L) of hydrogels containing Au-Cys. Additionally, protein adhesion of bovine serum albumin, lysozyme, and mucin was markedly decreased by approximately 25, 10, and 50 times, respectively.

Abbreviations

QCM: Quartz Crystal Microbalance; Au: Gold Nanoparticles; Cys: L-cysteine; Au-Cys: Gold Nanoparticles Functionalized with L-cysteine

Introduction

Diabetes is one of the biggest health problems facing humanity in the 21st century, characterized by high incidence rates, high mortality rates, high costs, and high rates of undiagnosed cases [1,2]. According to the International Diabetes Federation, as of 2019, 463 million people (aged 20-79) worldwide are suffering from diabetes. Among them, the number of diagnosed cases in China has reached 116.4 million, ranking first in the world [3]. Strict control of blood glucose can significantly reduce the risk of diabetes-related complications, highlighting the need for regular blood glucose monitoring [4]. Blood glucose testing typically requires finger pricks or other invasive methods, such as Continuous Glucose Monitoring Systems (CGMS) [5,6]. These methods are painful, inconvenient and carry infection risks , leading to poor patient compliance [7,8]. To address this challenge, saliva-based glucose monitoring has emerged as a promising alternative. Research has consistently demonstrated a strong correlation between salivary and blood glucose levels, making it an ideal non-invasive biomarker for diabetes management [9–11].

Quartz Crystal Microbalance (QCM) is an extremely sensitive mass sensor capable of detecting mass changes at the nanogram level [12,13]. Due to its simple structure, low cost, label-free nature, and real-time measurement capabilities, it is considered an ideal tool for detecting salivary glucose concentration [14,15]. The glucose detection technology based on QCM involves designing a glucose-sensitive film on the surface of the crystal chip, which detects glucose through the specific reversible binding between the film and glucose [16,17]. However, when using saliva as a sample for glucose monitoring, the main challenge lies in the highly complex composition of saliva, with extremely low levels of glucose (only 1/100 to 1/20 of blood glucose levels [18,19]) and very high levels of macromolecular proteins (71–2232 mg/L [20]). When the QCM sensor is exposed to saliva samples, the large signal generated by the non-specific adsorption of high-content proteins on the film can make it difficult to effectively identify the weak signal produced by the binding of trace amounts of glucose. Therefore, to achieve effective and accurate detection of salivary glucose, it is necessary to eliminate the interference from non-specific protein adsorption in saliva. To address this issue, constructing antifouling sensors based on functional materials is an effective solution [21]. For example, Yang, et al. [22] developed a zwitterionic hydrogel using polycarboxybetaine methacrylate (polyCBMA) as a base material for electrochemical glucose biosensors to detect glucose in complex media. The results showed that sensors coated with polyCBMA hydrogel by chemical methods exhibited good sensitivity and a linear response to glucose in PBS, 10%, 50%, and 100% human serum. Hu, et al. [23] polymerized the zwitterionic sulfobetaine methacrylate (SBMA) monomer on the surface of enzyme-adsorbed electrodes. The results indicated that the polymer brush coating reduced non-specific protein adsorption by more than 99%, and after 15 days, the sensor’s sensitivity remained at 94%. While successful in blood glucose detection, their application to salivary glucose remains limited due to the trade-off between antifouling properties and sensitivity. Developing novel antifouling materials tailored to the unique characteristics of saliva is crucial for advancing QCM-based salivary glucose monitoring [24,25].

We have successfully developed a novel salivary glucose sensor incorporating an antifouling hydrogel. The hydrogel, composed of gold nanoparticles (AuNPs) functionalized with L-cysteine (Cys), demonstrated enhanced glucose detection sensitivity and resistance to protein fouling. The strong Au-S bond facilitated the self-assembly of AuNPs and Cys, leading to a robust and biocompatible composite material. When integrated into a boronic acid hydrogel, this composite significantly improved the sensor’s performance in detecting salivary glucose under physiological conditions. Compared to sensors without the antifouling material, the response signal to glucose was 1.3 times higher, while maintaining excellent resistance to bovine serum albumin, lysozyme, and mucin. These findings highlight the potential of our approach for developing reliable and practical non-invasive saliva glucose sensors.

Experimental section

Reagents

N-Vinylpyrrolidone (NVP, 99%), acrylamide (AM, 98.5%), and ethylene glycol dimethacrylate (EGDMA, 98%) were purchased from Shanghai Macklin Biochemical Co., Ltd. 2,2-Dimethoxy-2-phenylacetophenone (DMPA, > 98%) was obtained from TCI (Shanghai) Development Co., Ltd. 3-Aminopropyltriethoxysilane (APTES, 98%) was acquired from Alfa Aesar (China) Chemical Co., Ltd. 3-Acrylamidophenylboronic acid (3-APB, 98%) was sourced from Tianjin Heowns Biochemical Technology Co., Ltd. N,N’-Methylenebisacrylamide (BIS, 98%) was obtained from Sinopharm Chemical Reagent Co., Ltd. Dimethyl sulfoxide (DMSO), glucose, L-cysteine, maleic anhydride, bovine serum albumin (BSA), lysozyme (LYS), mucin (MUC), and other chemicals were all analytical grade reagents.

Instruments

Glucose and antifouling tests were conducted using the QCM 200 (SRS). The surface morphology of the materials was studied using a scanning electron microscope (S-4800). The functional groups of the materials were determined using a micro-IR spectrometer (SP-200i). The chemical composition of the hydrogel was analyzed by X-ray photoelectron spectrometry (ESCALAB250- Xi). The pressure involved in the hydrogel preparation process was provided by a lab-built pressing machine. UV polymerization was carried out using a UV lamp (365 nm, with a maximum power of 3 W).

Synthesis of smart hydrogel

Surface modification of QCM chips: The QCM chips were ultrasonicated for 10 minutes in a piranha solution (a mixture of H2SO4 (96% w/w) and H2O2 (30% w/w) at a volume ratio of 7:3). After treatment, the chips were rinsed with distilled water and dried with nitrogen gas. The chips were then placed in a mixed solution of 3-aminopropyltriethoxysilane (100 µL) and ethanol (50 mL). After reacting at room temperature for 12 hours, the chips were repeatedly rinsed with ethanol and dried with nitrogen gas. The treated chips were then soaked in a mixed solution of maleic anhydride (1 g) and dimethylformamide (50 mL) and reacted at room temperature for 12 hours. Finally, the chips were rinsed with ethanol and dried with nitrogen gas [21].

Synthesis of Au-Cys: Citrate-protected gold nanoparticles were dispersed in a mixed ethanol-water solution containing an excess of L-cysteine. The ethanol content was maintained at 30% or less of the total volume. After a 24-hour reaction at room temperature, the resulting AuNPs-Cys composite was thoroughly washed with distilled water and dried for subsequent use [21].

Deposition of Au-Cys-hydrogel on the chip: A pre-polymerization solution was prepared by combining 0.3 mg Au-Cys, 17.2 mg 3-APB, 1.5 mg BIS, 27.7 mg AM, 2.6 mg DMPA, and 10 μL NVP in 100 μL dimethyl sulfoxide [21]. Twenty-five microliters of this solution were then dropped onto a 10 x 10 cm quartz plate. The chip was placed face down on the solution, firmly pressed and exposed to UV light for 1 hour. The hydrogel-coated chip was subsequently separated from the quartz plate by immersing it in distilled water and thoroughly washed [26]. The hydrogel synthesized using this composition formula is designated as Au-Cys-hydrogel.

Deposition of hydrogel without Au-Cys on the chip: A pre-polymerization solution was prepared by combining 17.2 mg 3-APB, 1.5 mg BIS, 27.7 mg AM, 2.6 mg DMPA, and 10 μL NVP in 100 μL dimethyl sulfoxide. Twenty-five microliters of this solution were then dropped onto a 10x10 cm quartz plate. The chip was placed face down on the solution, pressed firmly, and exposed to UV light for 1 hour. The hydrogel-coated chip was subsequently separated from the quartz plate by immersing it in distilled water and thoroughly washed. The hydrogel synthesized using this composition formula is designated as hydrogel.

Glucose sensor testing

The hydrogel-coated QCM chip was dried with nitrogen gas and then placed in the QCM reaction chamber. A peristaltic pump was used to introduce the test solution into the chamber while continuously monitoring the QCM frequency in real-time using specialized software. Once the frequency change (ΔF) stabilized, the hydrogel’s response to glucose and its antifouling properties were evaluated [21]. During each experiment, a 2 mL sample dissolved in Phosphate-Buffered Saline (PBS) was injected at a flow rate of 200 μL/s. After complete injection, the peristaltic pump was stopped, and the system was allowed to stabilize before introducing the next sample. Except for the pH tests conducted at pH 6.8, 7.2, and 7.5, all other QCM performance tests were performed at pH 7.2.

Results and discussion

Synthesis of Au-Cys-hydrogel

As mentioned in the introduction, the key obstacle in developing QCM-based salivary glucose sensors is the need to overcome the interference of high-concentration proteins while maintaining sensitivity to low levels of glucose. The design of antifouling glucose-sensitive hydrogels is therefore paramount for the successful implementation of such sensors.

Currently, anti-protein materials mainly include polyethylene glycol (PEG) [27] zwitterionic polymers [28] peptides and polypeptides [29] zwitterionic electrolytes (natural amino acids Arg+, Cys+,Asp- and Glu-, N+(CH3)3 and -SO3-/-COO-)30. Among them, natural amino acids, due to their zwitterionic nature, biomimetic properties, excellent chemical stability, convenient sourcing, and outstanding antifouling properties, have attracted widespread attention from researchers [30,31]. Particularly, L-cysteine (Cys), one of over 20 natural amino acids, is the only substance containing a thiol group (SH), which can be used for the modification of various materials [32] Gold nanoparticles (AuNPs), with their high surface-to-volume ratio, provide a means for signal amplification [33,34].

Based on this, a simple and efficient anti-contamination saliva glucose sensor is designed. Cys was grafted onto AuNPs via Au-S bonds to create an antifouling composite material. This composite was then incorporated into a hydrogel pre-polymerization solution and subsequently synthesized onto a double-bond modified QCM chip using UV pressing-assisted polymerization, resulting in the formation of the Au-Cys-hydrogel sensor [26].

As illustrated in Figure 1, when the sample solution is introduced onto the chip surface, the boronic acid functional groups within the hydrogel matrix undergo specific and reversible binding with glucose molecules. Simultaneously, the cysteine-modified gold nanoparticles (Au-Cys) effectively minimize nonspecific protein adsorption through their steric hindrance and hydrophilic properties, thereby eliminating potential interference from biological contaminants on the detection signal. This dual-function mechanism endows the sensor with remarkable selectivity and reliable detection performance, ensuring highly sensitive and accurate glucose quantification.

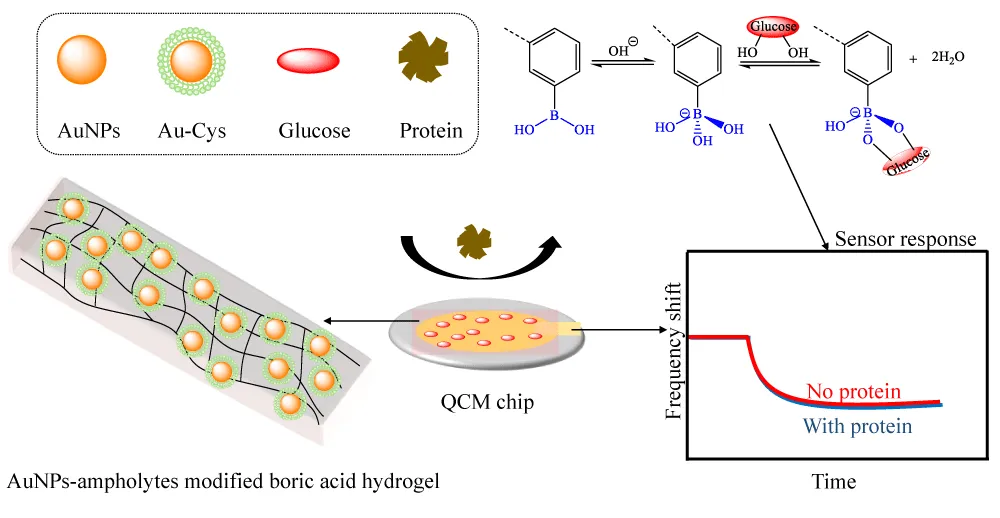

Figure 1: The preparation and identification process of saliva glucose sensor.

Material characterization

To verify the effectiveness of the synthesis of Au-Cys-hydrogel and to further understand the microscopic morphological characteristics of this material, we characterized and analyzed its properties using an infrared absorption spectrometer, X-ray Photoelectron Spectroscopy (XPS), and Scanning Electron Microscope (SEM) separately.

First, the Au-Cys and Au-Cys-hydrogel were characterized using an infrared spectrometer. As shown in Figure 2a-i, the blue curve represents the infrared absorption spectrum of Au-Cys. The peak appearing at ~3022 cm^-1 is attributed to the symmetric stretching vibration absorption of -NH₂. The stretching and bending absorption peaks of NH³⁺ appear at ~2919 cm^-1 and ~1578 cm^-1, respectively. Meanwhile, the peaks of the asymmetric and symmetric stretching vibrations of COO- appear at ~1618 cm^-1 and ~1483 cm^-1, respectively. The peak at ~772 cm^-1 indicates the formation of the Au–S bond [35]. Since Cys is a zwitterionic molecule, the absorption peaks of NH³⁺ and COO- originate from the partial protonation and ionization of NH₂ and COOH on Cys. These results ultimately confirm the successful grafting of Cys onto the surface of AuNPs. Figure 2a-ii, the red curve represents the infrared absorption spectrum of Au-Cys-hydrogel. The absorption peaks at ~3318 cm^-1 and ~3193 cm^-1 correspond to the asymmetric and symmetric vibrations of H-NCO. The peak at ~1653 cm^-1 is attributed to C=O stretching. The characteristic absorption peak of C₆H₆ appears at ~1421 cm^-1. The absorption peak at ~1342 cm^-1 is assigned to B(OH)₂ [36] The appearance of these absorption peaks confirms the formation of the boronic acid hydrogel.

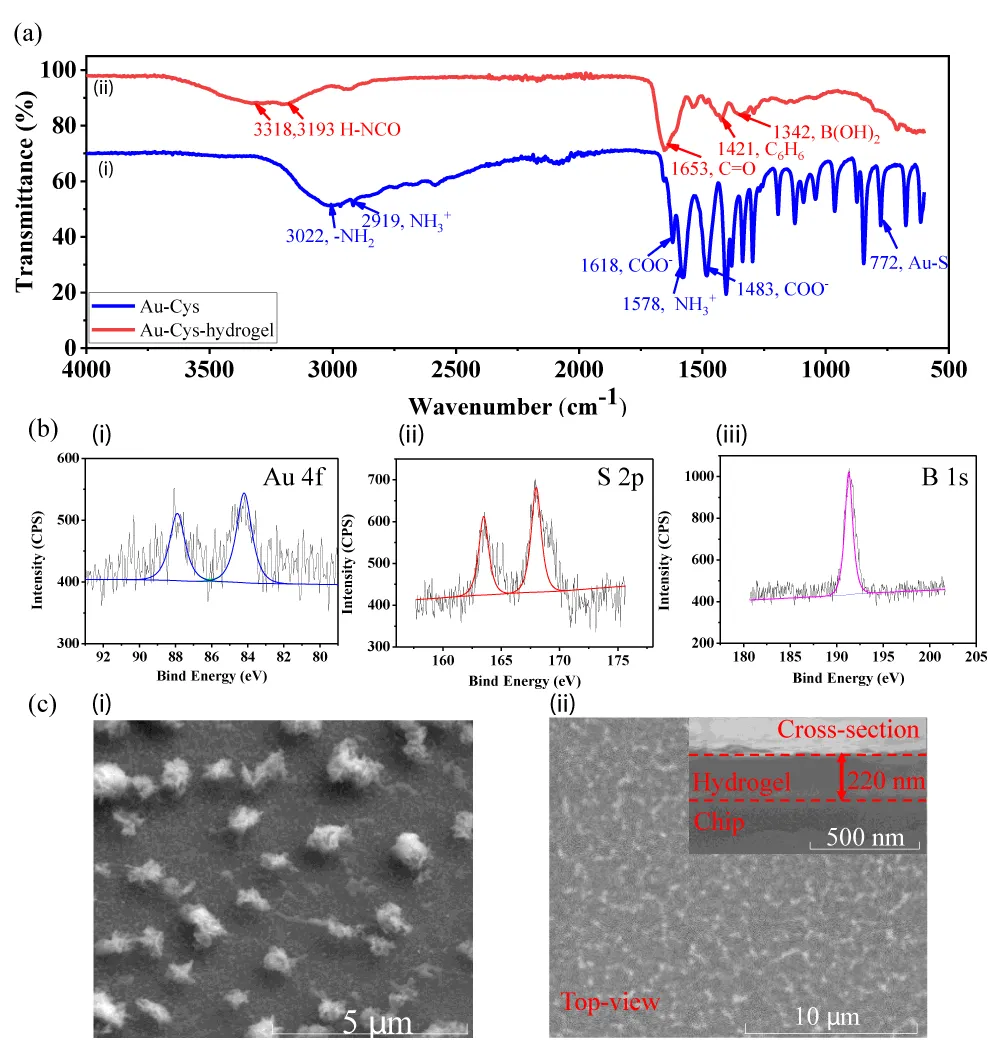

Figure 2: Characterization. (a) FTIR spectra of Au-Cys and Au-Cys-poly(acrylamide-co-3APB) hydrogel. (b) The XPS spectra of Au4fS2p and B1s. (c) The SEM of Au-Cys and Au-Cys-poly(acrylamide-co-3APB) hydrogel.

C 1s peak at 284.8 eV from Au-Cys-poly(acrylamide-co-3APB) hydrogel was used as a reference, using Gaussian–Lorentzian peak profiles after the Shirley background subtraction to get the peaks of Au 4f_7/2,5/2, S2P_3/2,1/2, and B1s (Figure 2b). The Au 4f_7/2 and 4f _5/2 signal at 84.2 eV and 87.9 eV, the S2P_3/2 and S2P_1/2 signal at 163.5 eV and 168.0 eV indicate the presence of Au-Cys in boronic acid hydrogel [37,38]. The B 1s signal at 191.4 eV indicates the presence of boronic acid groups [26].

Furthermore, the surface morphology of the Au-Cys and Au-Cys-hydrogel-coated chips were characterized using Scanning Electron Microscopy (SEM). Au-Cys was dispersed in ethanol solution and then dropped onto a single crystal silicon (111) surface. After the solvent evaporated, the samples were directly observed under SEM. Figure 2c-i shows that Au-Cys are in a clustered state. From the top view of the hydrogel-coated chip (Figure 2c-ii), it can be clearly seen that Au-Cys are uniformly dispersed within the hydrogel. The cross-sectional image reveals that the Au-Cys-hydrogel exhibits a dense microstructure with a thickness of approximately 220 nm.

The responsiveness to glucose

Theoretically, the concentration of glucose in saliva is 1/100 to 1/50 of the blood glucose concentration [39,40], ranging from 2 to 120 mg/L. As illustrated in Figure 3a , as the glucose concentration increases, △F gradually decreases. Conversely, as the glucose concentration decreases, △F gradually increases. For the same glucose concentration, △F is almost identical. Within the glucose concentration range of 0 to 200 mg/L, the Au-Cys-hydrogel demonstrates excellent responsiveness to glucose.

Figure 3: (a) The response of Au-Cys-hydrogel to glucose ranging from 0 to 200 mg/L (pH 7.2). (b) Influence of different pH on glucose test (pH 7.2). (c) The influence of different film thickness on glucose test. (d) Recovery test of Au-Cys-hydrogel (pH 7.2).

The response of Au-Cys-hydrogel to glucose was tested under different pH conditions (6.8 to 7.5, covering the physiological pH range of saliva). As shown in Figure 3b, with an increase in pH value, the absolute value of the corresponding △F gradually increases. This suggests that a slightly elevated pH can improve glucose sensitivity . The reason is that a higher pH promotes the hydrolysis of phenylboronic acid groups, allowing more boronic acid groups to bind with glucose. Additionally, the figure shows a good linear relationship between glucose concentration and △F at the same pH value, with linear correlation coefficients of 0.9938 (pH 6.8), 0.9553 (pH 7.2), and 0.9908 (pH 7.5).

It is known that the thickness of the hydrogel influences the sensitivity of the glucose QCM sensor [41]. Thus, different film thicknesses on glucose detection were studied. As can be seen from Figure 3c, the absolute value of response frequency increases gradually with the increase of film thickness. This means that the hydrogel swell, and more glucose molecules will be adsorbed to the surface of the sensor [26]. If the film thickness is greater than 830 nm, the QCM device is easy to stop vibration and cannot continue to work.

One of the greatest advantages of the reaction between glucose and phenylboronic acid is its reversibility [42]. This means that continuous glucose monitoring can be achieved during actual measurements without any washing or regeneration steps. To demonstrate the reversibility of our Au-Cys-hydrogel, we conducted repeated testing-elution cycles at a pH of 7.2, alternating between glucose concentrations of 0 and 200 mg/L. As shown in Figure 3d, the hydrogel exhibited complete reversibility throughout 10 cycles, indicating its suitability for continuous glucose monitoring.

Comparison of anti-protein performance and glucose sensitivity

Using hydrogel without Au-Cys as a control experiment, the antifouling performance of Au-Cys-hydrogel against Bovine Serum Albumin (BSA), Lysozyme (LYS), and Mucin (MUC) was evaluated, and the changes in its glucose sensitivity were analyzed. Figure 4a shows the results for BSA on both types of hydrogels. The results indicate that when the BSA concentration was 400 mg/L, the frequency shift (△F) for Hydrogel decreased by about 45 Hz; whereas, at a BSA concentration of 10,000 mg/L, the △F for Au-Cys-hydrogel decreased by only about 15 Hz. Similarly, when the LYS concentration was 10 mg/L, the △F for Hydrogel decreased by about 70 Hz; whereas, at a LYS concentration of 100 mg/L, the △F for Au-Cys-hydrogel decreased by only about 28 Hz (Figure 4b). For mucin, when its concentration was 5 mg/L, the △F for Hydrogel decreased by about 70 Hz; whereas, at a concentration of 250 mg/L, the △F for Au-Cys-hydrogel decreased by only about 17 Hz (Figure 4c). In summary, compared to hydrogel without Au-Cys, the anti-protein performance of Au-Cys-hydrogel improved by approximately 25, 10, and 50 times for BSA, LYS, and MUC, respectively. These results of three proteins fully confirm that the incorporation of the antifouling material Au-Cys into the hydrogel can significantly enhance its antifouling properties . The mechanism is that Au-Cys forms a hydration layer via electrostatic and hydrogen bonding , which can bind a large number of water molecules and generate strong repulsive forces against proteins at specific distances [43,44].

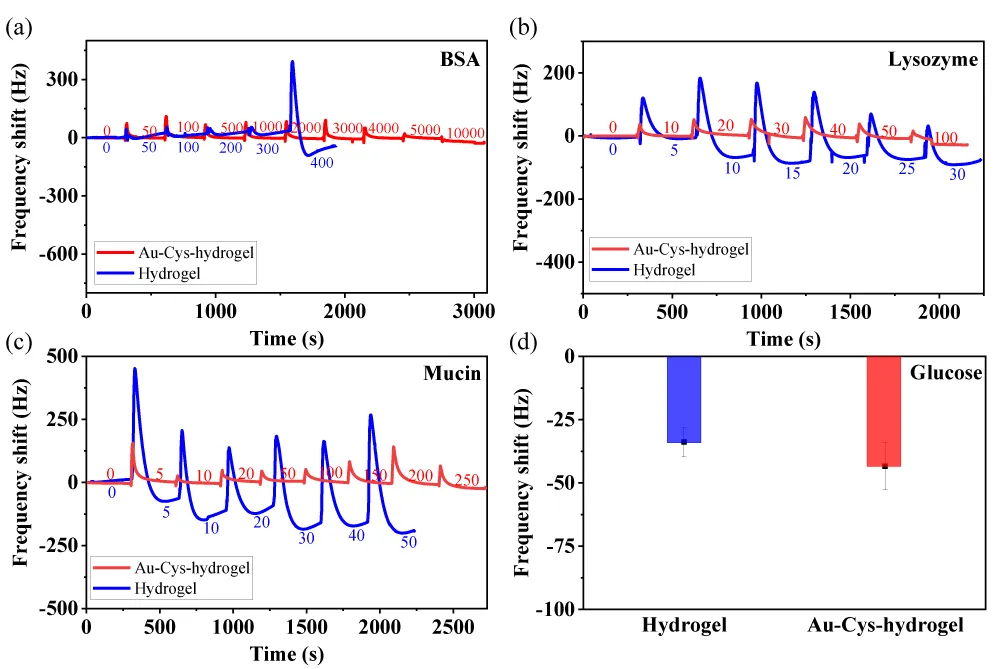

Figure 4: Results of tests on BSA (a), lysozyme (b), mucin (c) and glucose (d) by Au-Cys-hydrogel and hydrogel.

Furthermore, the glucose sensitivity of Hydrogel and Au-Cys-hydrogel was compared. As shown in Figure 4d, the sensitivity of the QCM sensor was calculated based on the Sauerbrey equation, assuming that the adsorption layer on the QCM chips is rigid and uniform. The sensitivity calculation is shown in Equation (1). When the glucose concentration was 100 mg/L, the average value of △F for hydrogels containing Au-Cys was 45 Hz, while for hydrogels without Au-Cys, the average value of △F was 34 Hz. Therefore, the sensitivity of glucose increased from 0.34 Hz/(mg/L) to 0.45 Hz/(mg/L). This enhancement can be attributed to the signal amplification provided by the incorporated gold nanoparticles. Collectively, these findings demonstrate that the introduction of Au-Cys not only improves the antifouling properties of the hydrogel but also enhances its sensitivity to glucose.

$Sensitivity=\frac{△F}{C}\text{ (1)}$

Conclusion

This study successfully developed a novel QCM-based glucose sensor incorporating an antifouling hydrogel. The sensor demonstrated reliable detection of salivary glucose under physiological conditions and exhibited exceptional resistance to protein fouling. Notably, the sensitivity of hydrogels without Au-Cys increased from 0.34 Hz/(mg/L) to 0.45 Hz/(mg/L) for hydrogels containing Au-Cys . Furthermore, the antifouling properties of the Au-Cys-hydrogel against bovine serum albumin, lysozyme, and mucin were significantly enhanced, improving antifouling performance by approximately 25-, 10-, and 50-fold, respectively . These findings offer valuable insights for the design of advanced antifouling QCM glucose sensors.

Data availability statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.
